Technical Specifications

•

  OS

  RTOS

•

  Processor

  Dual-Core Cortex-A5, 500MHz

•

  Memory

  RAM: 16MB

  FLASH: 8MB

•

  Indicator Lights

  1 * Charging Indicator

  1 * Status Indicator

•

  Card Slots

  1 * SIM

•

  Peripheral Ports

  1 * Micro USB

•

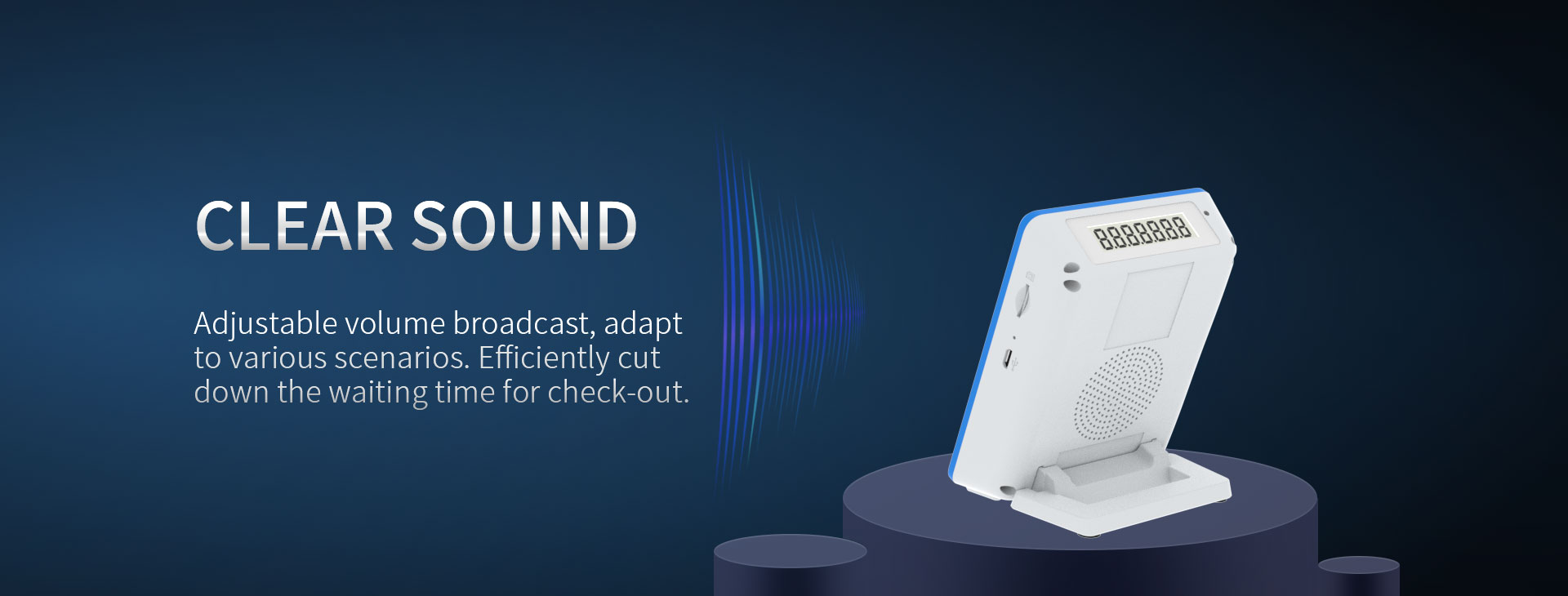

  Speaker

  4Ω3W, Adjustable Volume

•

  Dimensions

  112×86×63.4 mm

  L×W×H

•

  Battery

  3.7V/2000mAh

•

  Certifications

  CE, BIS, WPC

•

  Weight

  203g

•

  Power Supply

  Input: 100V-240V 50/60Hz

  Output: 5V/1A

•

  Optional Configurations

  NFC Tags

  Numeric Keypad

•

  Accessory

  Power Adapter (Optional)

  USB Cable

•

  Communication

  4G Cat1+2G

  Optional:

  4G Cat1

  Wi-Fi 2.4GHz

•

  Keys

  1 * Power Key

  1 * Function Key

  2 * Volume Up/Down Keys

  1 * Reset Pinhole

•

  Display

  Customer Screen:

  2.4" TFT Color Display,

  320×240 Pixels

  Static QR Code Plate (Optional)

  Main Screen (Optional):

  7-Segment Display

•

  Environmental

  Operating Temperature:

  -10℃～50℃

  Storage Temperature:

  -20℃～70℃

  Relative Humidity:

  5%～95%, Non-condensing
