OS

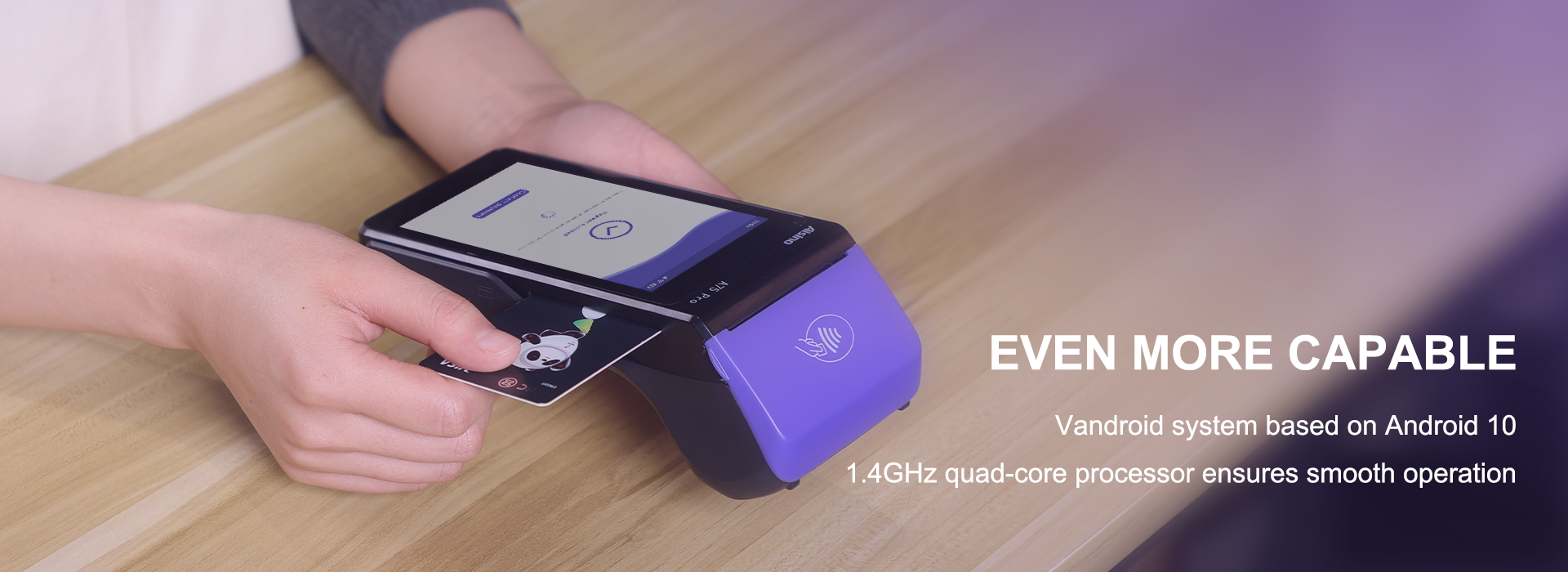

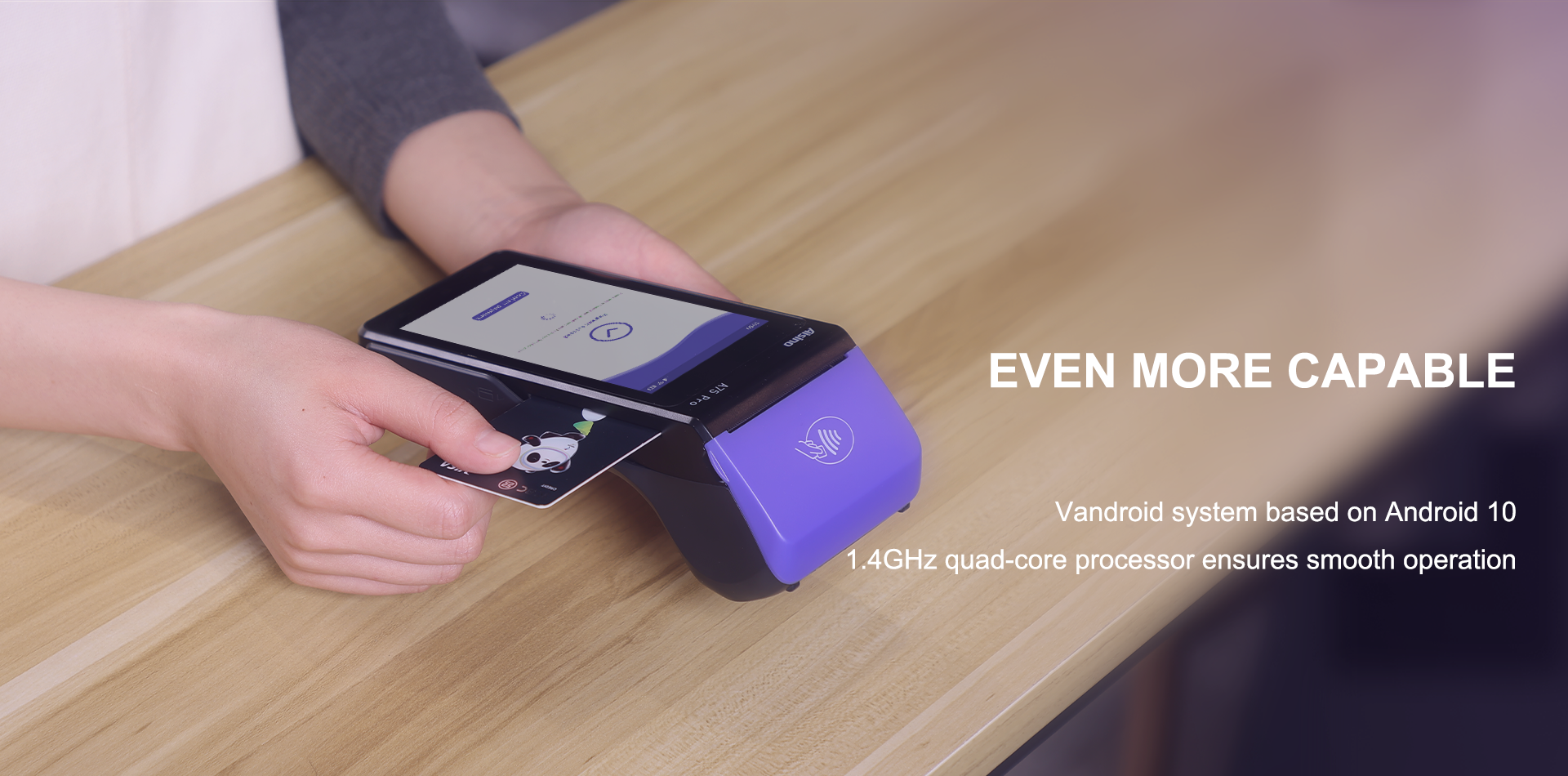

VanDroid V1.0.0
Based on Android 10.0
Processor
Quad-core Cortex-A53, 1.4GHz+Secure Processor
Card Readers
Magstripe Card Reader
Smart Card Reader
Contactless Card Reader
Memory
RAM: 1GB (Optional 2GB)
FLASH: 8GB (Optional 16GB)
Micro SD Card up to 128GB
Audio
Speaker
Card Slots
1 * SIM (Optional: 2 * SIM)
2 * PASM
1 * Micro SD
Printer
Thermal Printer
Paper Width: 58 mm
Diameter: 40mm
Display

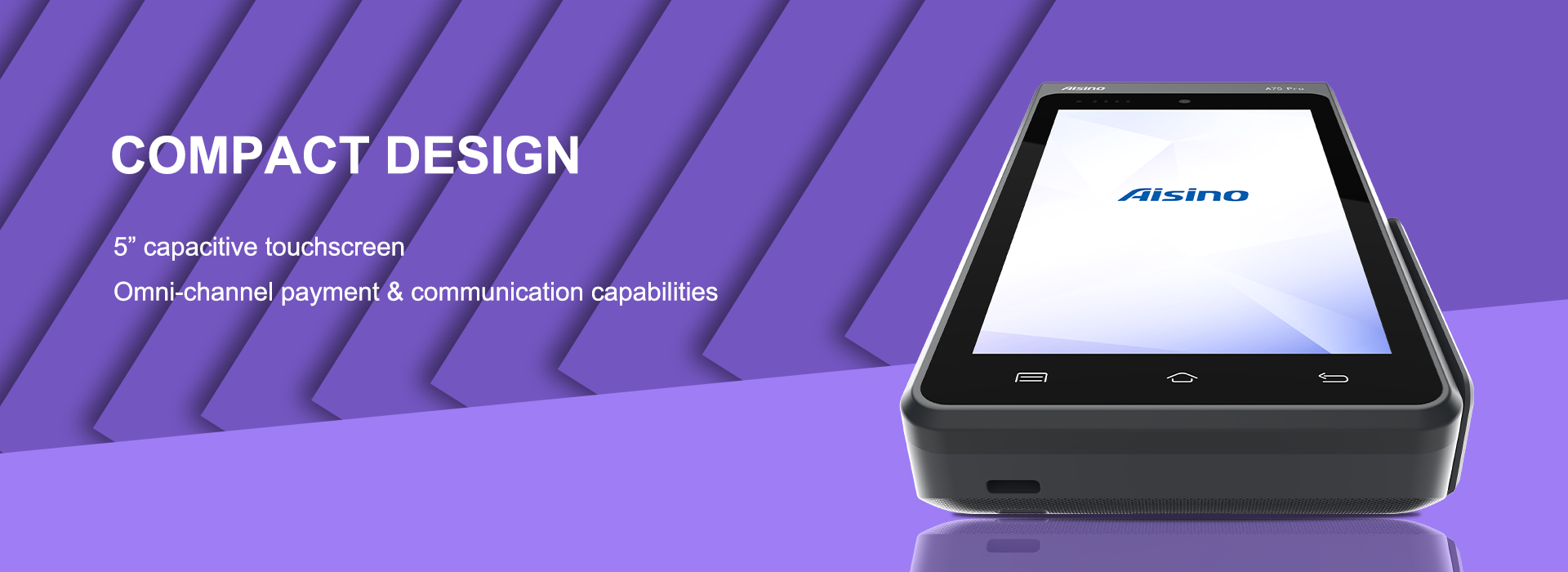

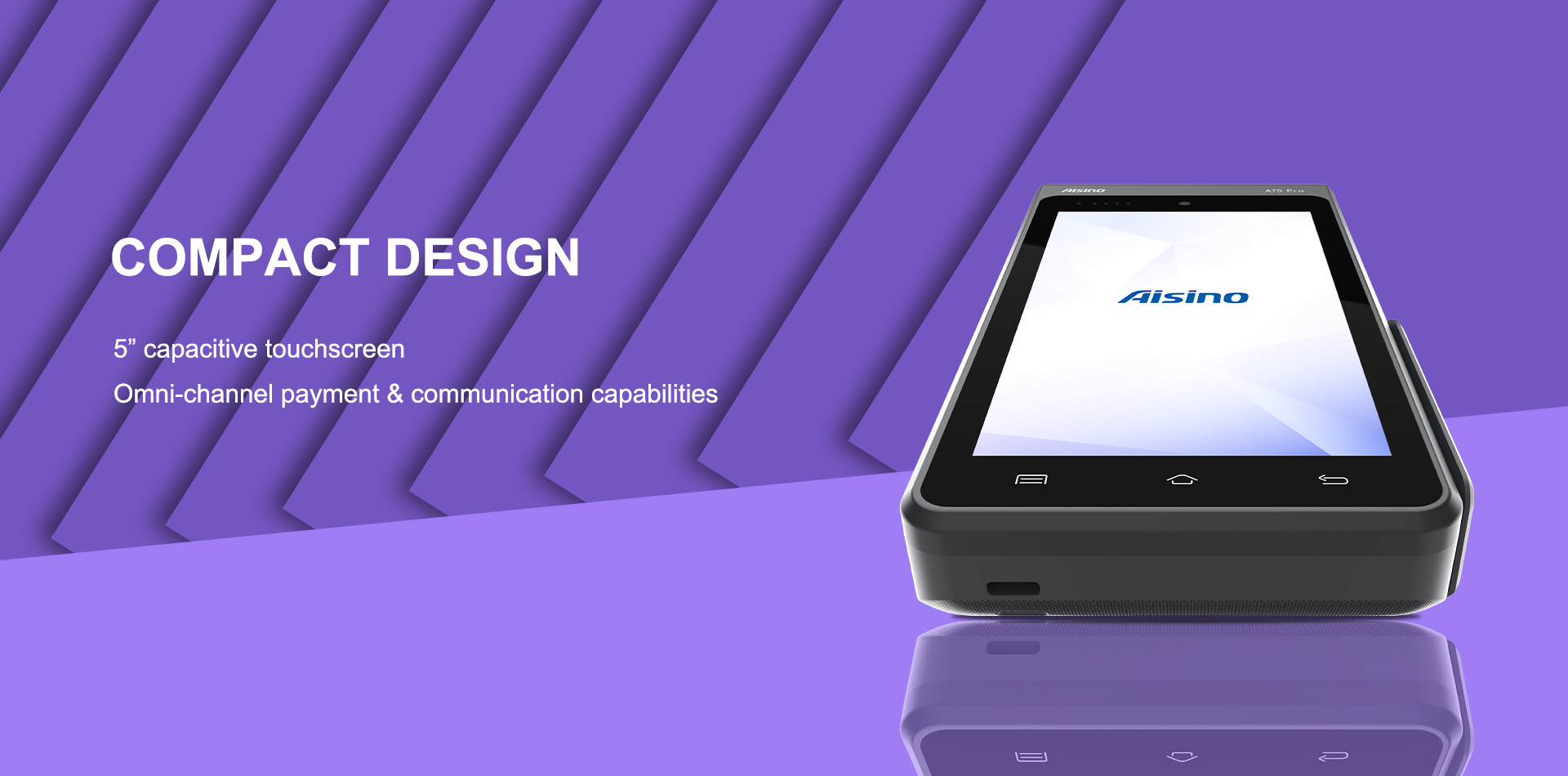

5" IPS Display, 1280×720 Pixels
Multi-point Capacitive Touchscreen
Peripheral Ports
1 * USB Type-C (Supports OTG)
GNSS
GPS/BeiDou
GPS/GLONASS (Optional)
Dimensions
181×80×68mm
L×W×H
Keys
1 * Power Key
1 * Function Key
3 * Touch Keys
Battery
3.6V/5200mAh
Indicator Lights
4 * Contactless Indicators
1 * Charging Indicator
Communication
4G (Supports 3G&2G)
Bluetooth 4.2
Wi-Fi 2.4GHz (Optional 5GHz)

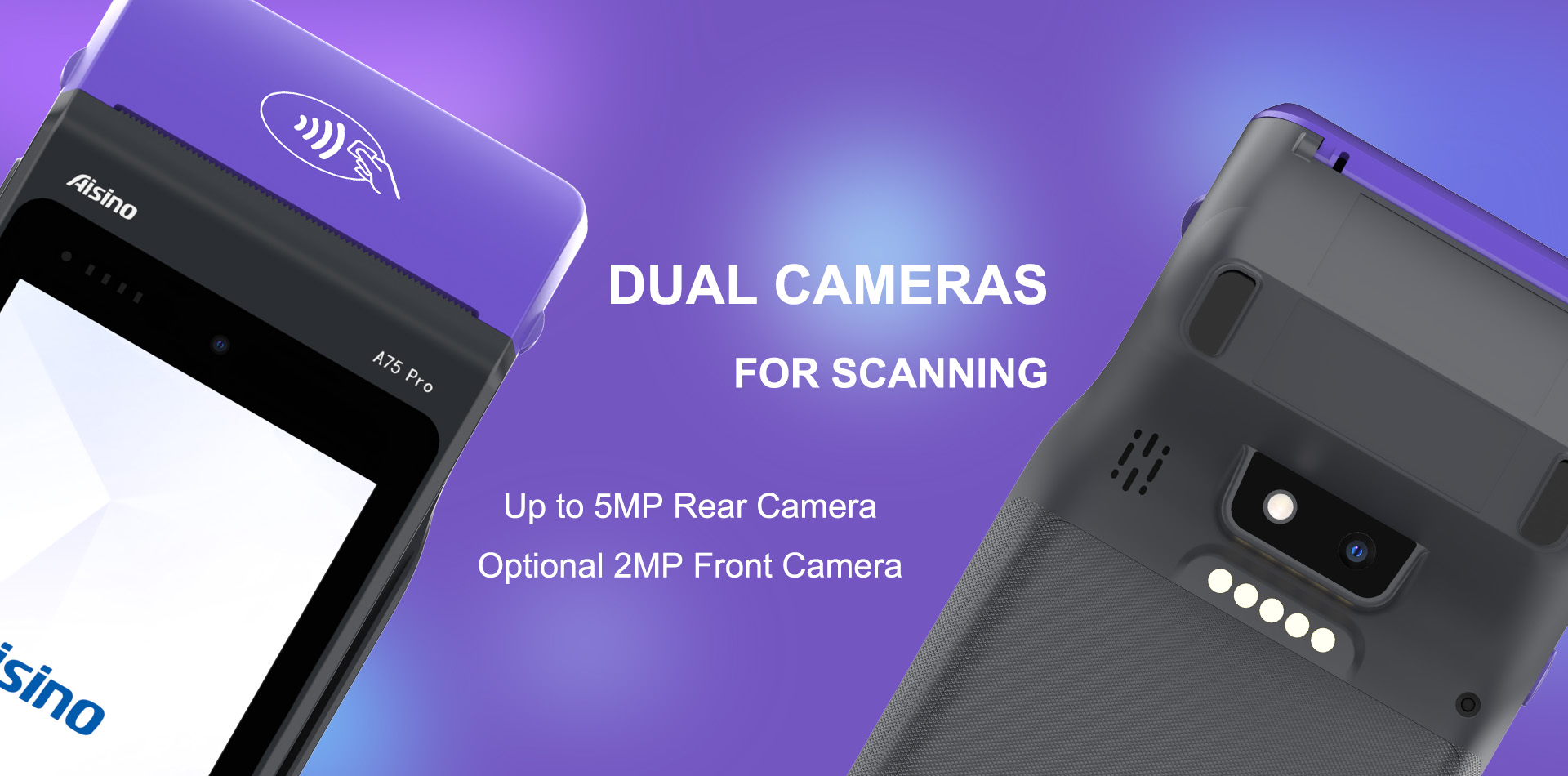

Camera
2MP Front Camera (Optional)
2MP Rear Camera
Optional: 5MP Rear Camera,
Auto Focus, Flashlight
1D/2D Scanning
Environmental
Operating Temperature:
0℃ ~ 50℃
Storage Temperature:
-20℃ ~ 70℃
Relative Humidity:
5%~95%, Non-condensing
Certifications
PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, RuPay, MCCS, Mastercard TQM, ROHS, FCC, CE, BIS, WPC, SONCAP
Power Supply
Input: 100V-240V 50/60Hz
Output: 5V/2A
Accessory
Power Adapter
USB Cable
