Click to view
OS
VanDroid
(Based on Android 10.0)
Processor

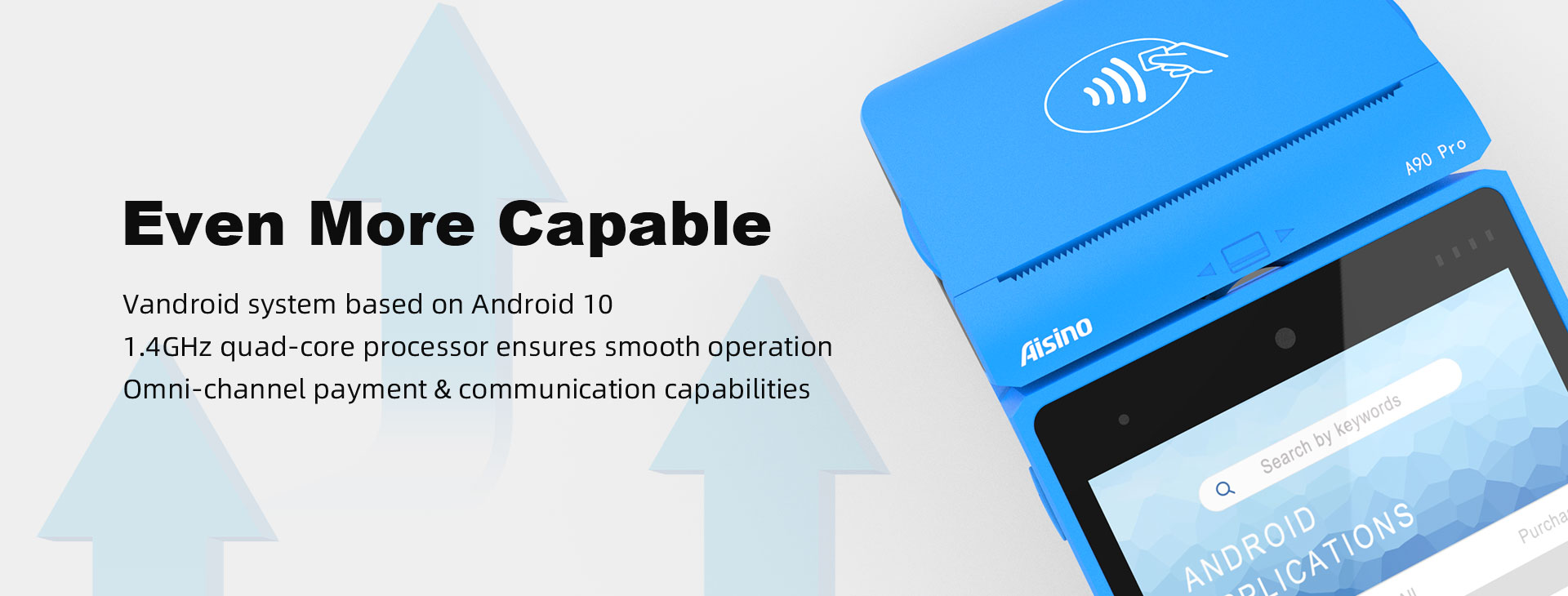

Quad-core Cortex-A53, 1.4GHz+Secure Processor
Memory
RAM: 1GB (Optional 2GB)
FLASH: 8GB (Optional 16GB)
Micro SD Card up to 128GB
Card Readers
Magstripe Card Reader
Smart Card Reader
Contactless Card Reader
Audio
Speaker, Buzzer
Display
5.5" IPS Display, 1280×720 Pixels (Optional: 960×540 Pixels)
Multi-point Capacitive Touchscreen
Card Slots
2 * SIM
2 * PSAM
1 * Micro SD
eSIM (Optional)
Printer
Thermal Printer
Paper Width: 58mm
Diameter: 40mm
Keys
1 * Power Key
1 * Function Key
3 * Touch Keys (Optional)
Communication
4G (Supports 3G&2G)
Bluetooth 4.2
Wi-Fi 2.4GHz (Optional 5GHz)
Peripheral Ports
1 * Powered USB Type-C
GNSS
GPS/BeiDou
GPS/GLONASS (Optional)
Dimensions
205×82×65mm
L×W×H
Weight
440g
Indicator Lights
4 * Contactless Indicators
1 * Charging Indicator
Battery
3.6V/5200mAh
(Optional: 3.6V/6000mAh)
Power Supply
Input: 100-240V 50/60Hz
Output: 5V/2A
Environmental
Operating Temperature:
-10℃ ~ 50℃
Storage Temperature:
-20℃ ~ 70℃
Relative Humidity:
5%~95%, Non-condensing
Optional
Fingerprint Module
Docking Stations:
3 Optional Docking Stations:
Support Charging, Scanning Reflection, Serial Ports, Ethernet, USB Extension Port, Wireless Communication
Camera

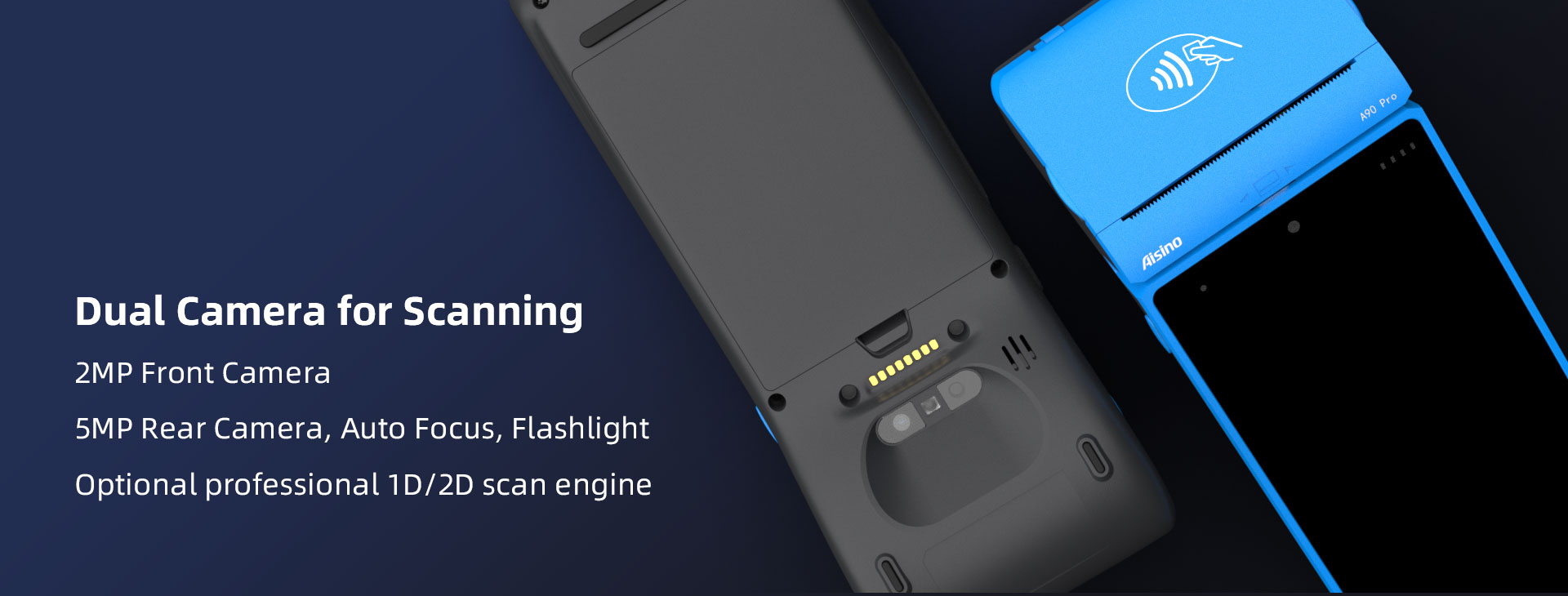

2MP Front Camera
5MP Rear Camera, Auto Focus, Flashlight
1D/2D Scanning
Optional: 1D/2D Barcode Scan Engine
Certifications
PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, PURE, MIR, NSICCS, ABECS, VCCS, MCCS, Mastercard TQM, ROHS, FCC, CE, SDPPI, BIS, WPC, SONCAP
Accessory
Power Adapter
USB Cable
