Technical Specifications

•

  OS

  RTOS

•

  Processor

  High Performance Processor

•

  Memory

  RAM: 16MB

  FLASH: 8MB

  Optional:

  RAM: 4MB

  Flash: 4MB

•

  Card Slots

  1 * SIM

•

  Peripheral Ports

  1 * Micro USB for Charging

  1 * USB Type C for Charging (Optional)

•

  Speaker

  4Ω3W, Adjustable Volume

•

  Indicator Lights

  1 * Charging Indicator

  1 * Status Indicator

•

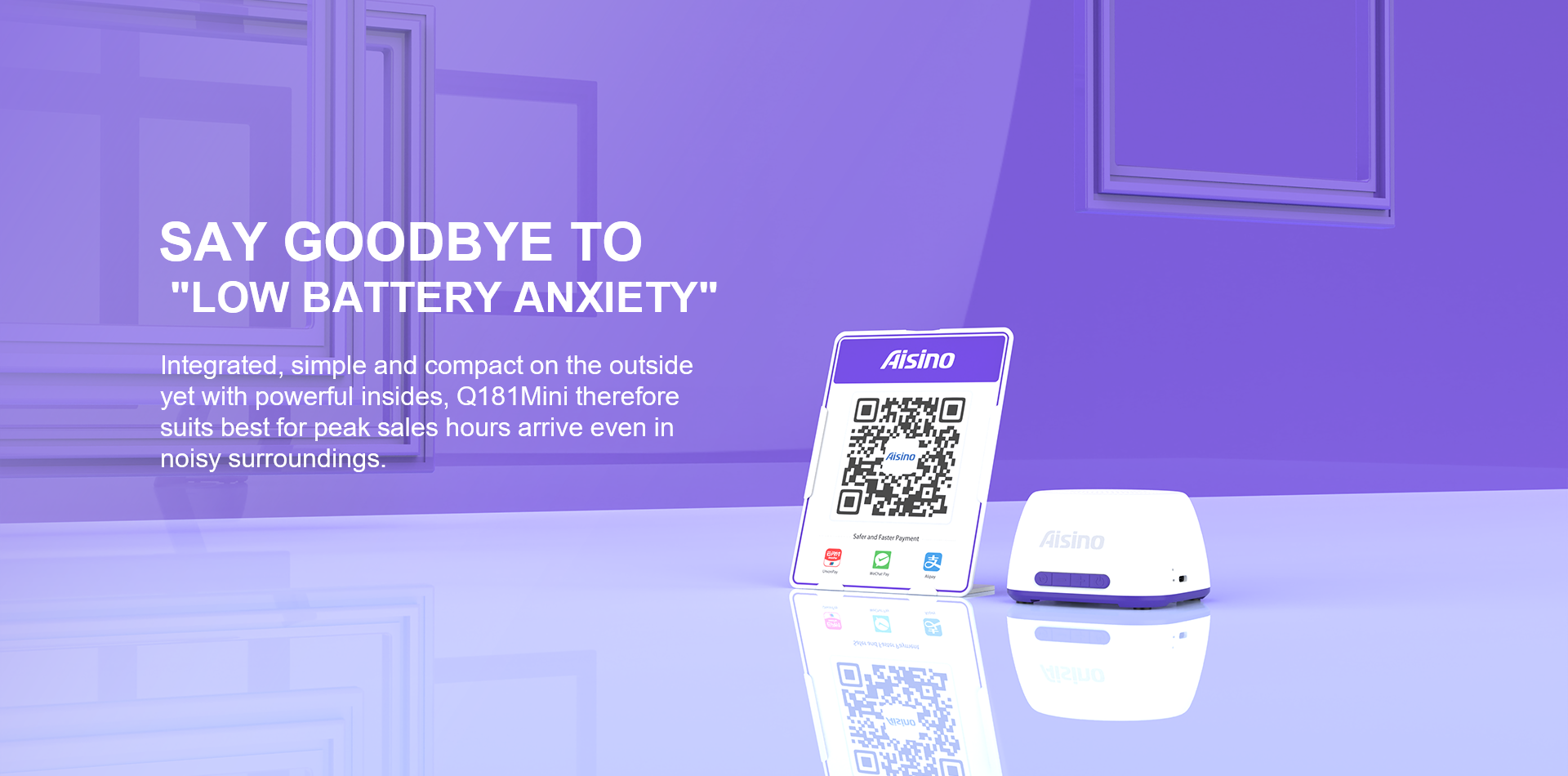

  Battery

  3.7V/2000mAh

•

  Power Supply

  Input: 100V-240V 50/60Hz

  Output: 5V/1A

•

  Accessory

  Power Adapter (Optional)

  USB Cable

•

  Certifications

  ROHS, CE, BIS, WPC

•

  Weight

  160g

  75g Optional Panel

•

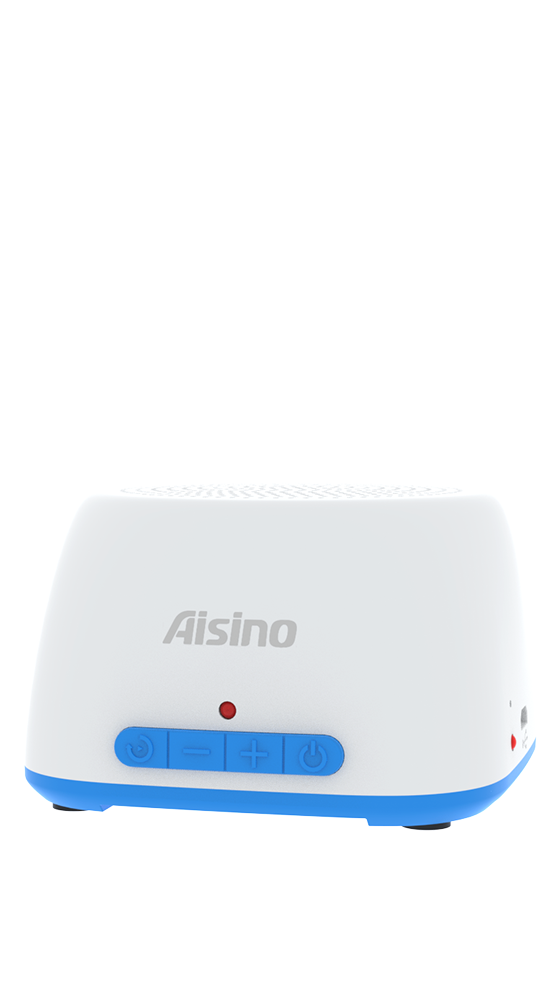

  Keys

  1 * Power Key

  1 * Function Key

  2 * Volume Up/Down Keys

  1 * Reset PINhole

•

  Communication

  4G Cat1+2G

  Optional:

  4G Cat1

  Wi-Fi 2.4GHz

•

  Dimensions

  80×80×50.5mm

  108×106×144mm Optional Panel

  L×W×H

•

  Environmental

  Operating Temperature:

  -10℃～50℃

  Storage Temperature:

  -20℃～70℃

  Relative Humidity:

  5%～95%, Non-condensing

•

  Display

  7-Segment Display (Optional)
