Technical Specifications

•

  OS

  VanDroid

  Based on Android 10.0

•

  Processor

  Quad-core Cortex-A53, 1.4GHz+Secure Processor

•

  Memory

  RAM: 1GB (Optional 2GB)

  FLASH: 8GB (Optional 16GB)

  Micro SD Card up to 128GB

•

  Display

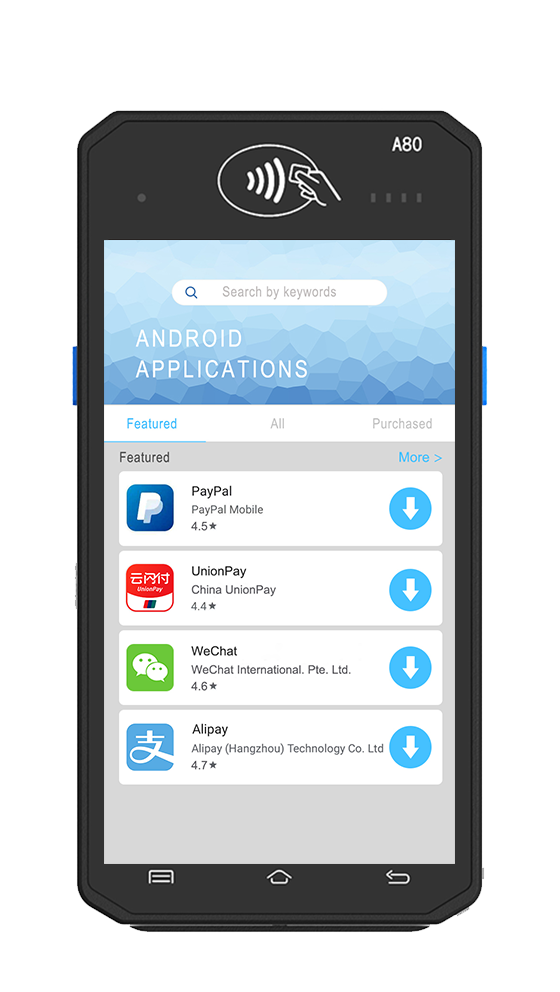

  5" IPS Display, 1280×720 Pixels

  Multi-point Capacitive Touchscreen

•

  Camera

  2MP Rear Camera

  Optional: 5MP Rear Camera,

  Auto Focus, Flashlight

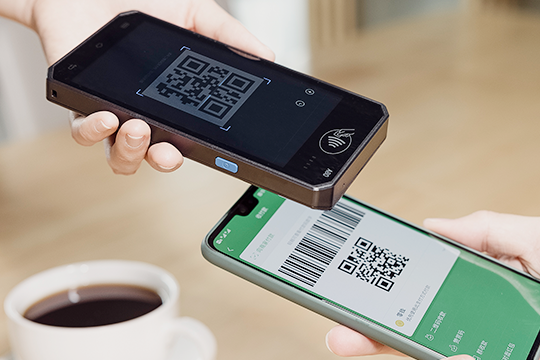

  1D/2D Scanning

•

  Card Readers

  Smart Card Reader

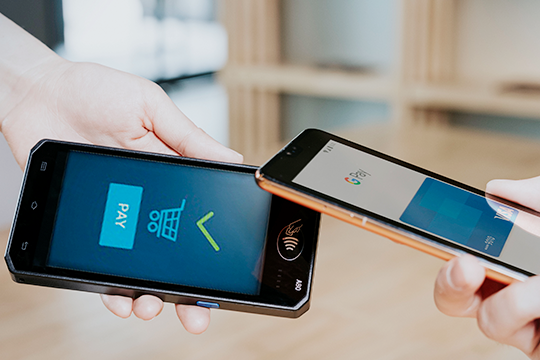

  Contactless Card Reader

•

  Audio

  Speaker

•

  Card Slots

  1 * SIM

  2 * PSAM

  1 * Micro SD

•

  Keys

  1 * Power Key

  1 * Function Key

  3 * Touch Keys

•

  PIN Pad

  Secure Virtual Keypad

  for PIN Entry

  Water Resistant,

  Dust Resistant,

  Backlight

•

  Communication

  4G (Supports 3G&2G)

  Bluetooth 4.2

  Wi-Fi 2.4 GHz (Optional 5GHz)

•

  Peripheral Ports

  1 * Powered USB Type-C

•

  GNSS

  GPS/GLONASS/BeiDou

•

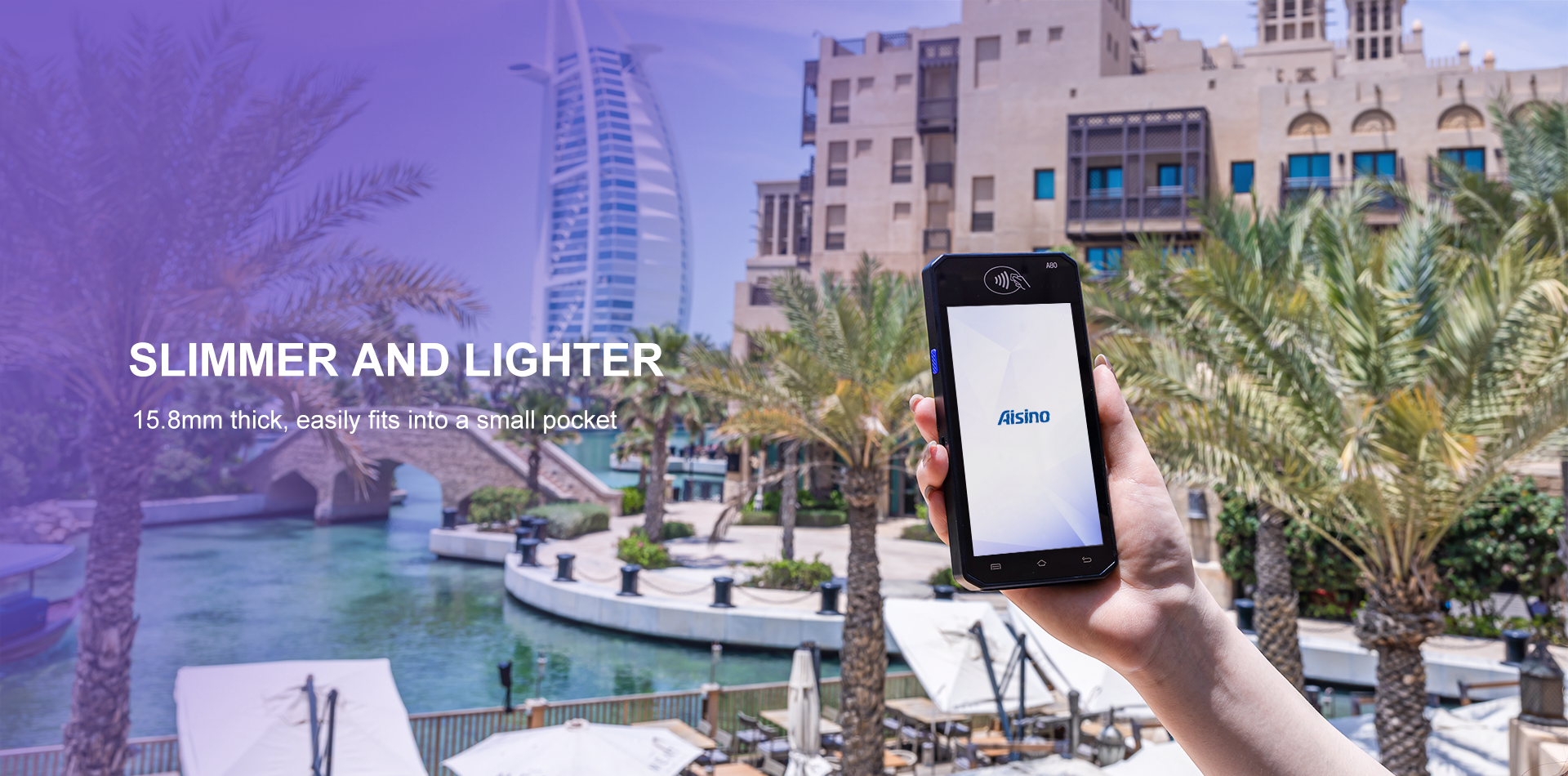

  Dimensions

  150×76×15.8mm

  L×W×H

•

  Weight

  220g

•

  Indicator Lights

  4 * Contactless Indicators

  1 * Charging Indicator

•

  Battery

  3.85V/3000mAh

•

  Power Supply

  Input: 100V-240V 50/60Hz

  Output: 5V/1A

•

  Environmental

  Operating Temperature:

  -10℃ ~ 50℃

  Storage Temperature:

  -20℃ ~ 70℃

  Relative Humidity:

  5%~95%, Non-condensing

•

  Certifications

  PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, PURE, RuPay, MIR, VCCS, Mastercard TQM, ROHS, FCC, CE, BIS, WPC, SONCAP

•

  Optional Configurations

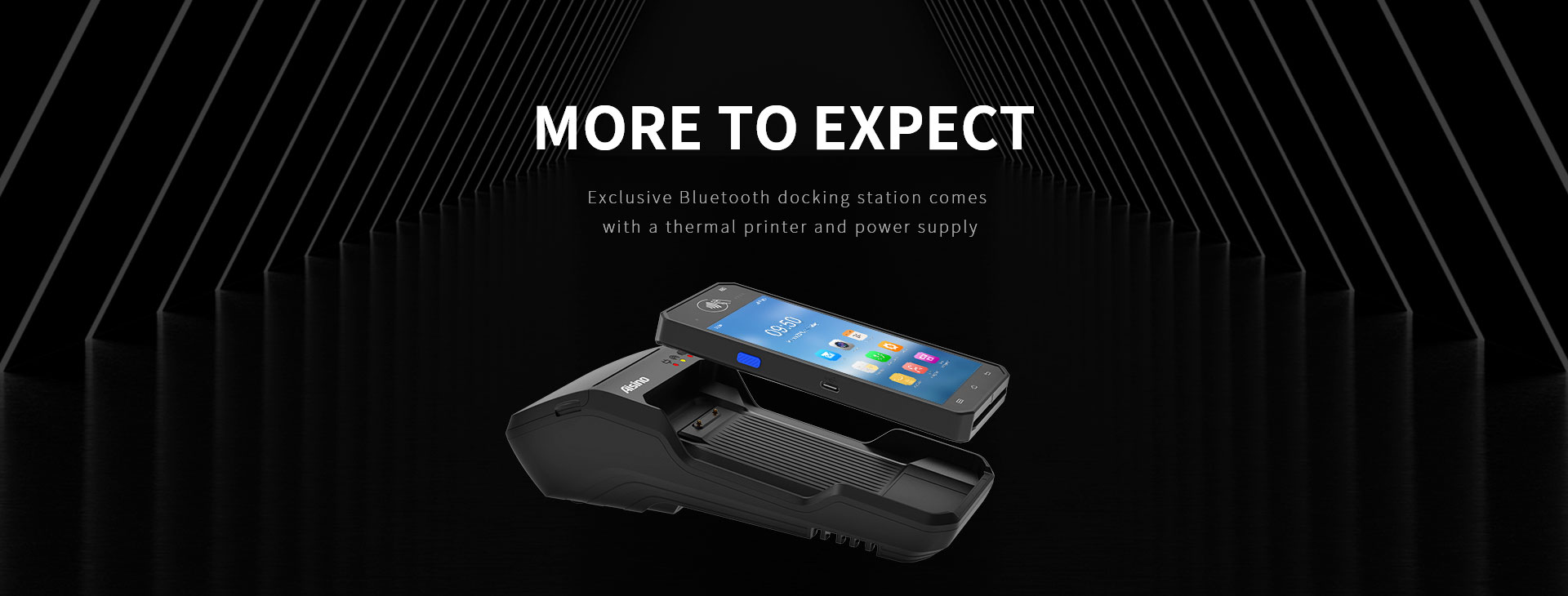

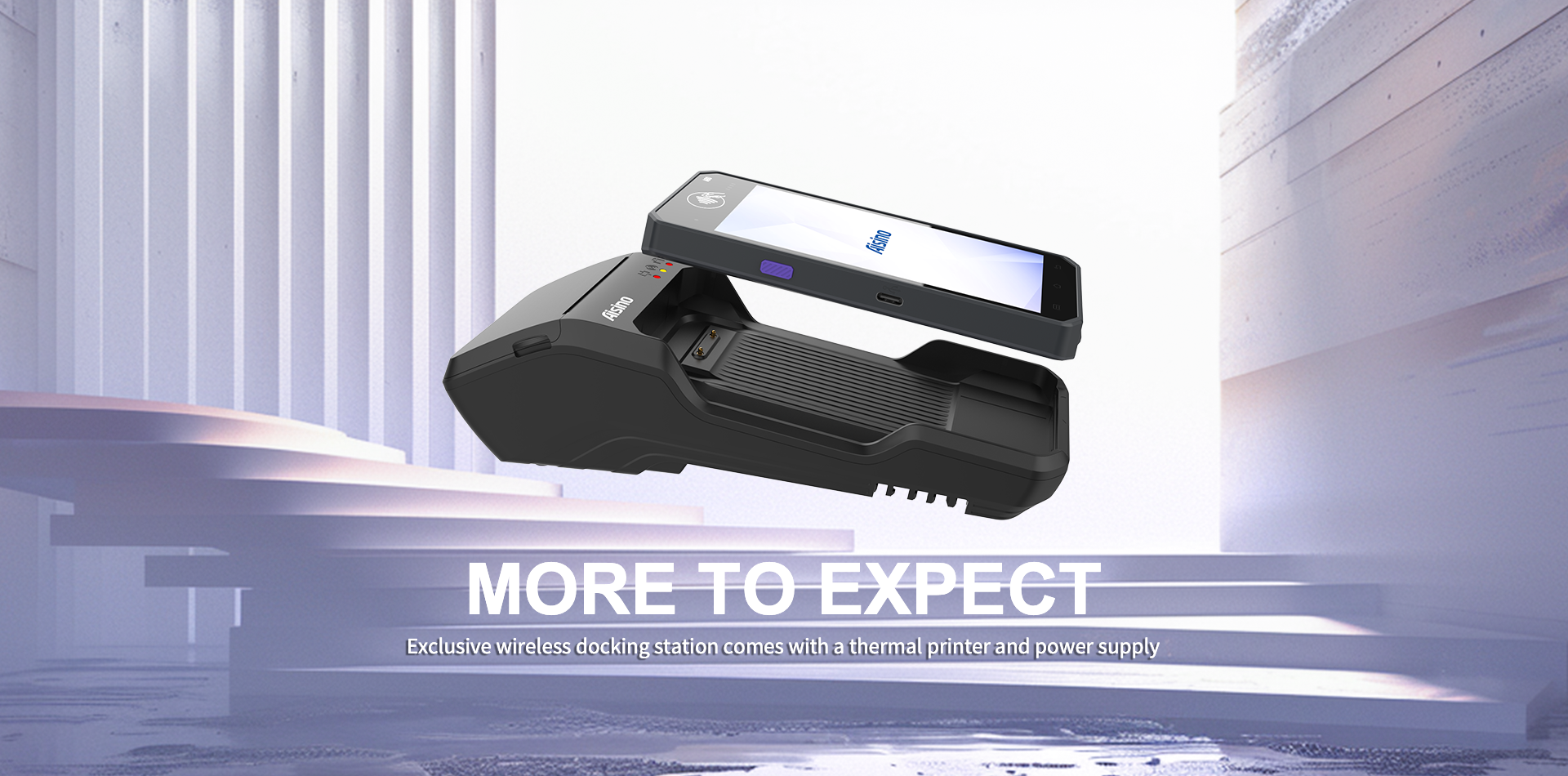

  Docking Stations:

  3 Optional Docking Stations:

  Support Charging, Scanning Reflection, Serial Ports, Ethernet, USB Extension Port, Wireless Communication, Printing

•

  Accessory

  Power Adapter

  USB Cable
