Technical Specifications

•

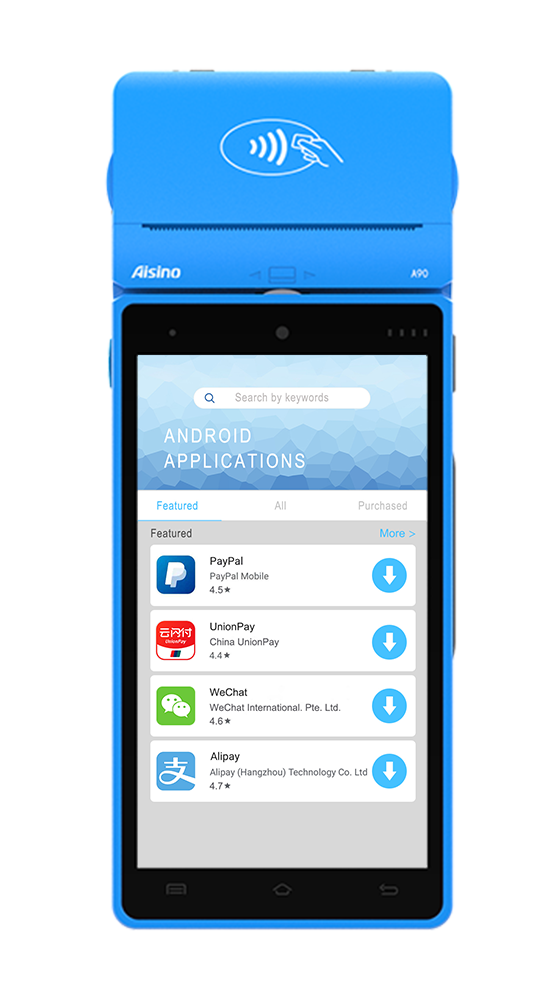

  OS

  Android 7.1

•

  Processor

  Quad-Core Cortex-A7

  1.1GHz + Secure Processor

•

  Memory

  RAM: 1GB (Optional 2GB)

  FLASH: 8GB (Optional 16GB)

  Micro SD Card up to 32GB

•

  Display

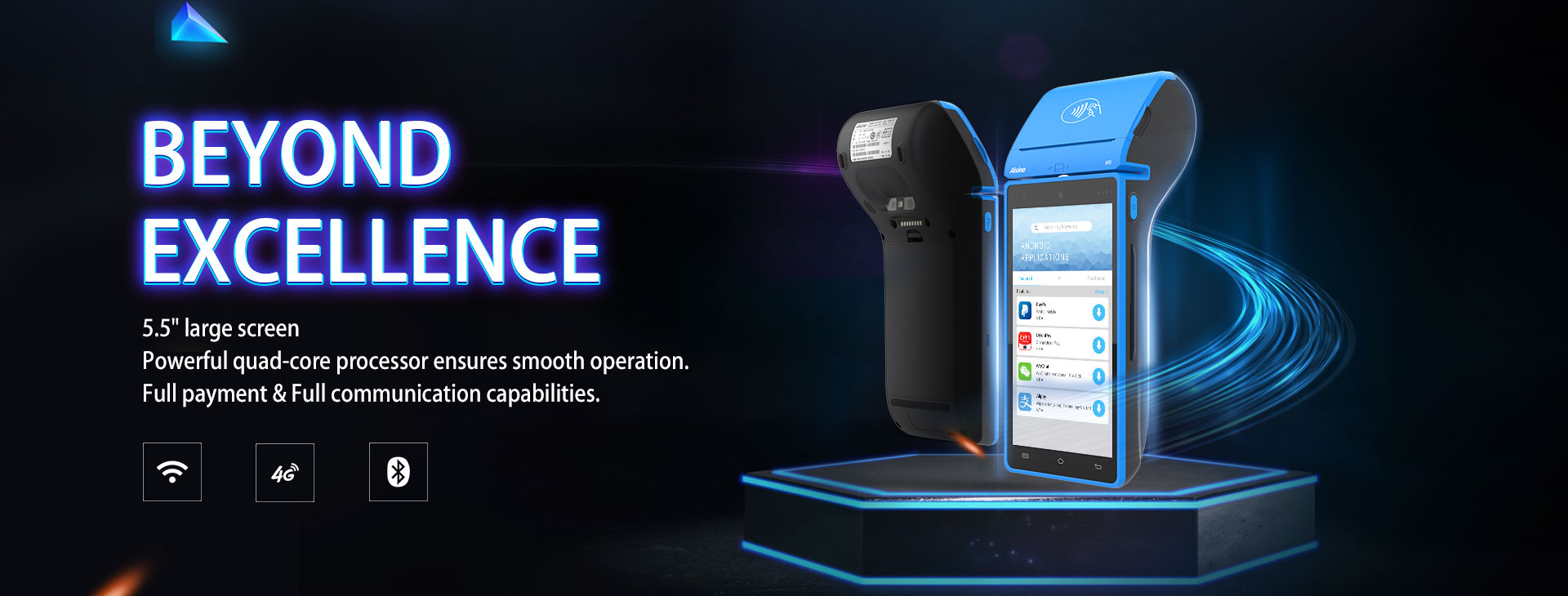

  5.5" IPS Display, 1280×720 pixels

  Multi-point Capacitive Touchscreen

•

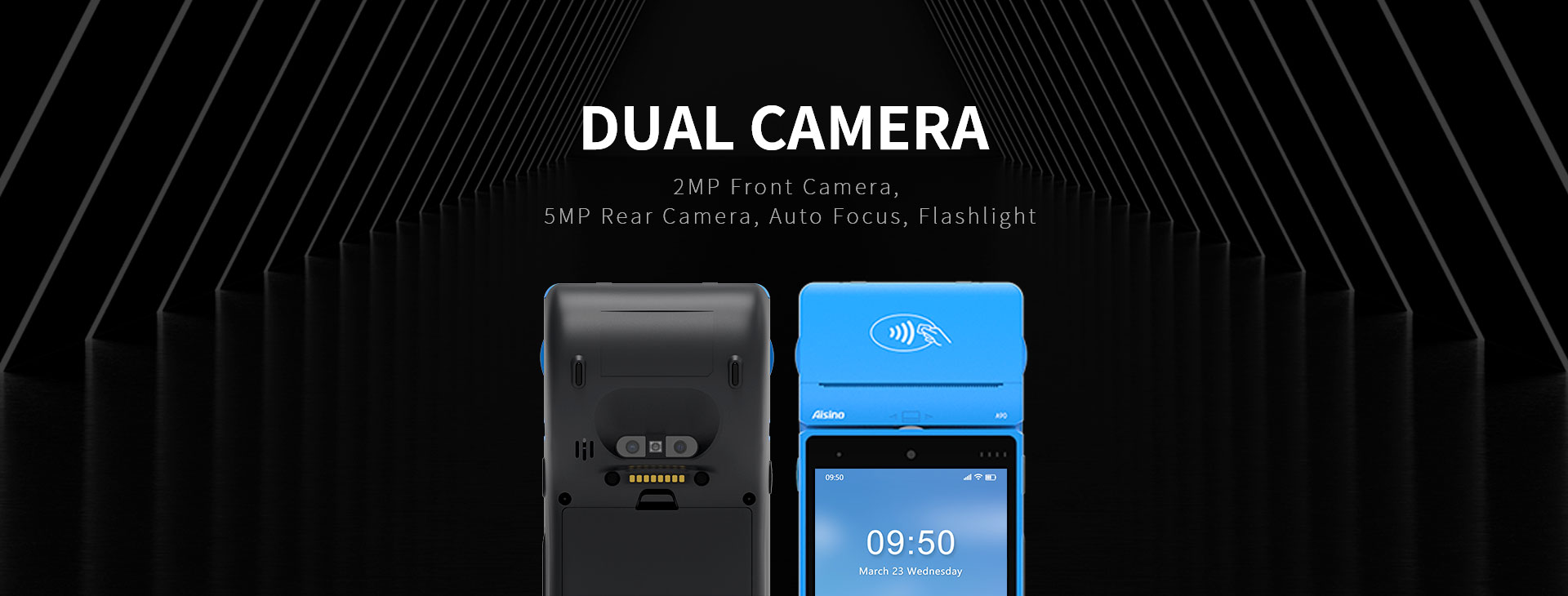

  Camera

  2MP Front Camera,

  5MP Rear Camera

  Auto Focus, Flashlight

  1D/2D Scanner

•

  Card Readers

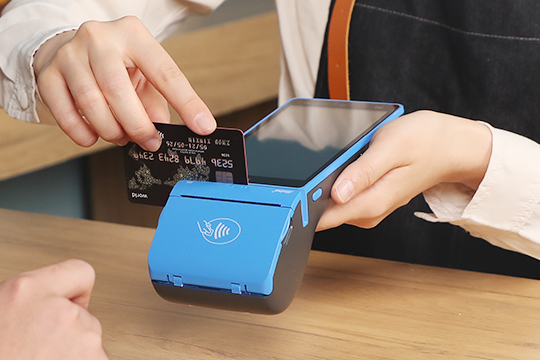

  Magstripe Card Reader

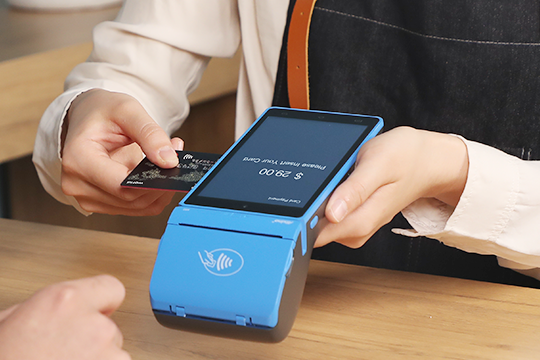

  Smart Card Reader

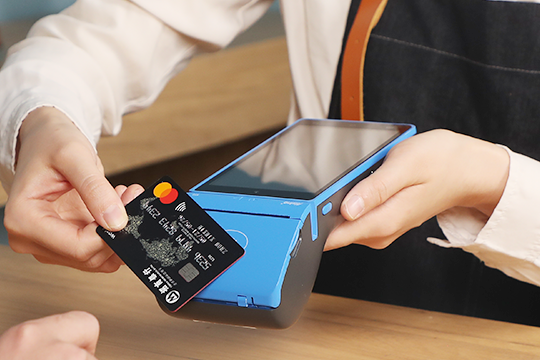

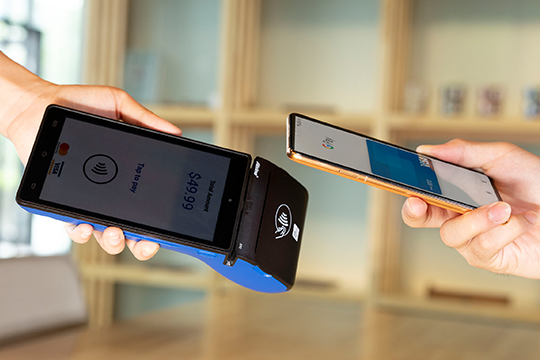

  Contactless Card Reader

•

  Audio

  Speaker, Buzzer, Microphone

•

  Card Slots

  2 * SIM

  2 * PSAM

  1 * Micro SD

•

  Thermal Printer

  Paper Width: 58mm

  Diameter: 40mm

•

  Keys

  1 * Power Key

  1 * Function Key

  3 * Touch Keys

•

  Communication

  4G(Supports 3G&2G)

  Bluetooth 4.2

  Wi-Fi 2.4GHz+5GHz

•

  Peripheral Ports

  1 * USB Type-C

  Optional: Interface of

  Tax-controlled Module

•

  GNSS

  GPS/GLONASS/BeiDou

•

  Dimensions

  205×82×65mm

  L×W×H

•

  Weight

  440g

•

  Indicator Lights

  4 * Contactless Indicators

  1 * Charging Indicator

•

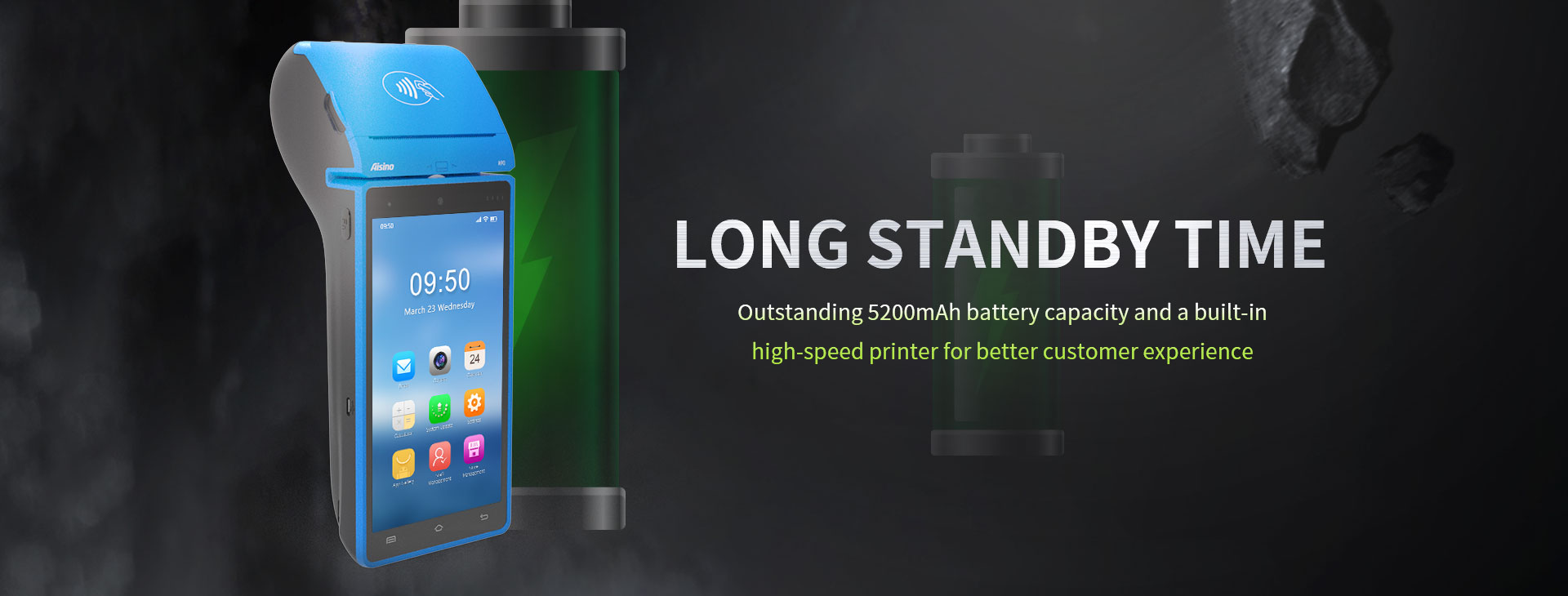

  Battery

  3.6V/ 5200mAh

•

  Power Supply

  Input: 100-240V 50/60Hz 0.5A

  Output: 5V/ 2A

•

  Environmental

  Operating Temperature:

  -10℃ ~ 50℃

  Storage Temperature:

  -20℃ ~ 70℃

  Relative Humidity:

  5%~95%, Non-condensing

•

  Optional

  Fingerprint Module

  Docking Stations:

  3 Optional Docking Stations

  Support Charging, Scanning Reflection, Serial Ports, Ethernet, USB Extension Port, Wireless Communication

•

  Certifications

  PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, Mastercard TQM, RuPay, NSICCS, PURE, FCC, CE, ROHS, Anatel, SDPPI, SABER, NTRA VOC, BIS, WPC
