Technical Specifications

•

  OS

  VanLin V1.0.0

•

  Processor

  Cortex-A7,

  1.2GHz+Secure Processor

•

  Memory

  RAM: 128MB

  FLASH: 256MB

•

  Display

  2.4" TFT Display, 240×320 Pixels

  Optional: Resistive Touchscreen

•

  Camera (Optional)

  Top or Rear,

  0.3MP Single Camera,

  1D/2D Scanning

•

  Card Readers

  Magnetic Card Reader

  Smart Card Reader

  Contactless Card Reader

•

  Communication

  4G Cat-4 (Supports 3G/2G)

  Optional:

  Wi-Fi 2.4GHz+Bluetooth 5.0

•

  Keys

  10 * Alphanumeric Keys

  5 * Function Keys

  1 * Power Key

•

  Card Slots

  1 * SIM

  Optional ：1 * SIM, 1 * PSAM

•

  Audio

  Buzzer

  Speaker (Optional)

•

  Peripheral Ports

  1 * Powered USB Type-C Host/Slave

•

  Dimensions

  132×71 ×17mm

  L×W×H

•

  Weight

  166g

•

  Battery

  3.7V/2000mAh

•

  Power Supply

  Input: 100V～240V 50/60Hz

  Output: DC 5V/1A

•

  Indicator Lights

  1 * Charging Indicator

  4 * Contactless Indicators

•

  Accessory

  Stylus Pen

  Power Adapter (Optional)

  USB Cable

•

  Optional Configurations

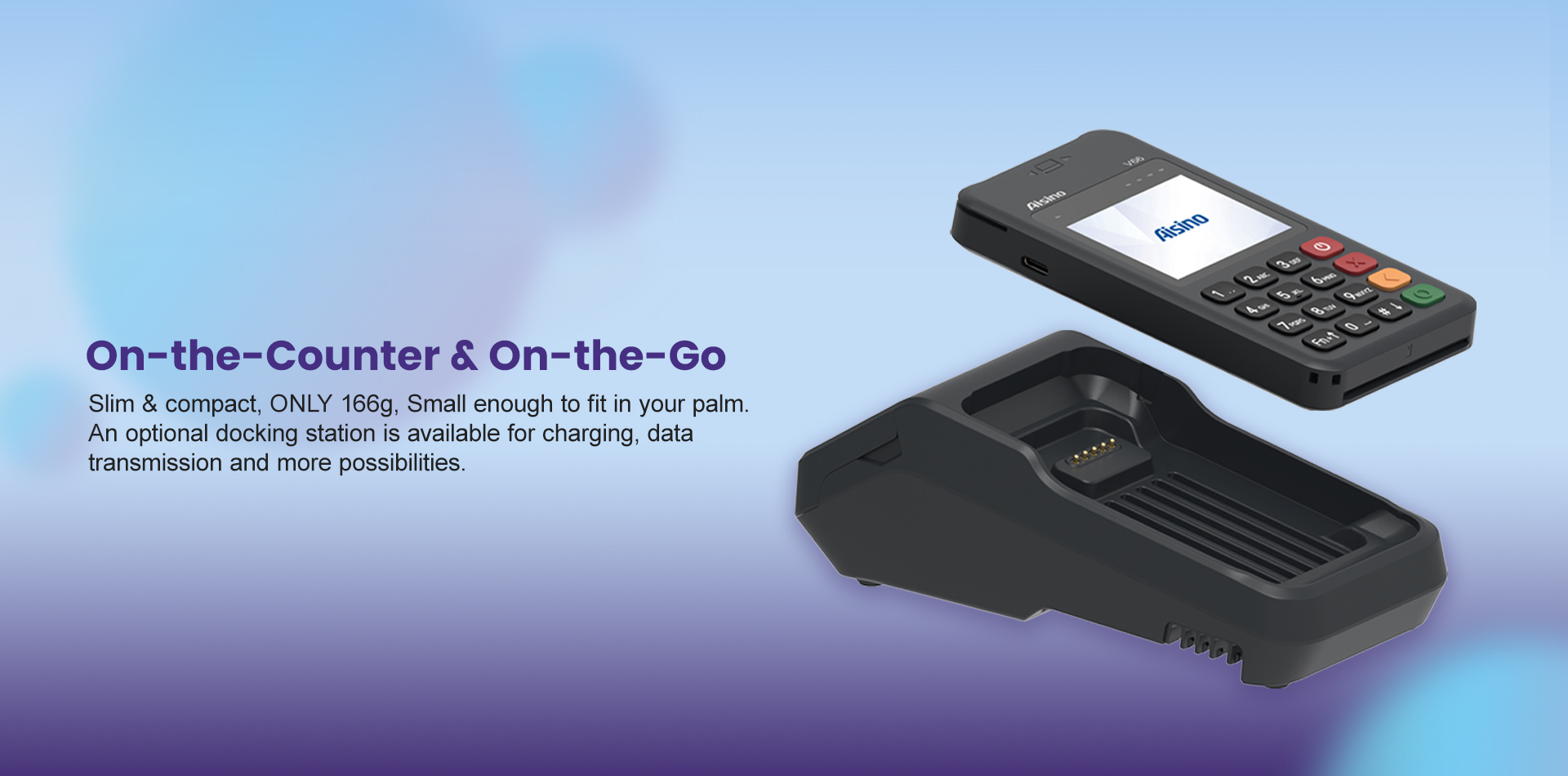

  Docking Stations:

  Support Charging, Serial Ports, Ethernet, USB Extension Port, Wireless Communication, Printing

•

  Environmental

  Operating Temperature:

  -10℃ ~ 50℃

  Storage Temperature:

  -20℃ ~ 70℃

  Relative Humidity:

  5%~95%, Non-condensing

•

  Certifications

  PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, ABECS, Mastercard TQM, ROHS, FCC, CE, Anatel, SONCAP, UN38.3
